Long-range Mass Device Connectivity

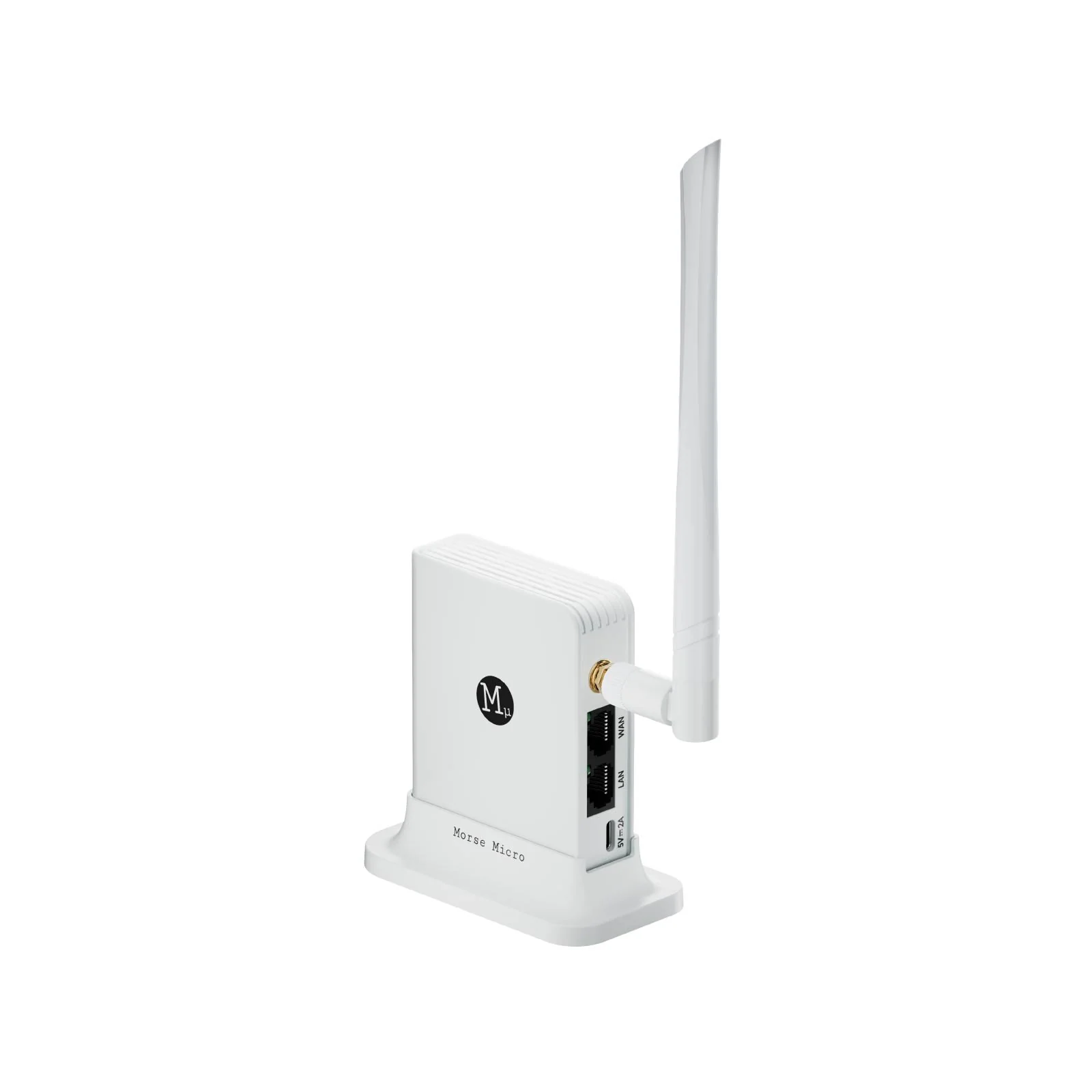

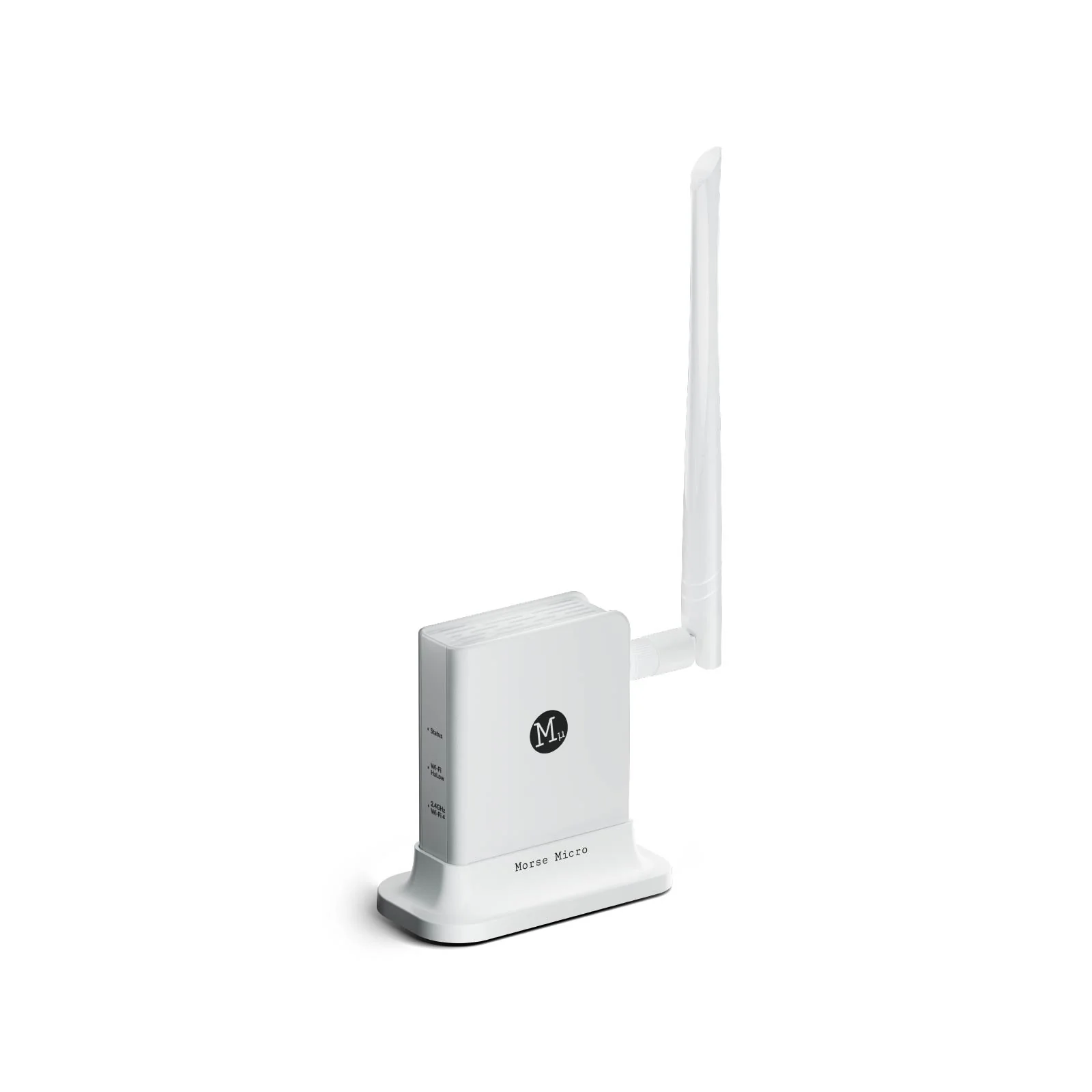

HaLowLink 2 is a Wi-Fi HaLow router capable of long range Wi-Fi and mass connectivity of IoT devices. It can be flexibly deployed as a router, access point and extender to create a network optimized for HaLow devices. Powered by Morse Micro’s newest and highest performing MM8108 8MHz chipset, it is ideal for expansive environments and large-scale IoT deployment.

Long range transimission: Up to 1km (0.6 miles) Wi-Fi HaLow range

Massive device connectivity: Connect up to 1,000 IoT end devices

Powerful signal penetration: Sub-1GHz signal penetrates multiple floors and walls

View Specs

Features Deployment Scenarios Wi-Fi HaLow Explained Specs

Long-range Transmission

Delivers up to 1 km of Wi-Fi HaLow, ten times the range of tradition Wi-Fi.

Massive Device Capacity

Built to handle thousands of IoT devices. Scale up as much as you like.

Powerful Signal Penetration

Penetrates through multiples walls and floors effectively with sub-1GHz signal.

Compatible with 2.4GHz Wi-Fi

Connects traditional IoT devices, phones and laptops through Wi-Fi or LAN.

How to Deploy HaLowLink 2

1
2 2
3 3

Wi-Fi HaLow & 2.4GHz Access Point

HaLowLink 2 can act as an access point on its own, providing both Wi-Fi HaLow and 2.4GHz Wi-Fi coverage for Wi-Fi HaLow devices and standard devices, allowing flexible set ups according to your environment.

Connect Wi-Fi HaLow-enabled devices

Wi-Fi HaLow end devices makes the most out of HaLowLink 2's long range and mass connectivity. Connect thousands of IoT devices within 1km (0.6 miles) radius.

Connect standard devices

Pair a second HaLowLink 2 as an extender to create a 2.4GHz Wi-Fi hotspot for non-Wi-Fi HaLow-enabled devices. Enable instant, plug-and-play connectivity across large spaces.

Cover Multiple Acres

Just one HaLowLink 2 provides connectivity for over 200 acres. No need for complex network infrastructure. Easily collect and monitor crucial agricultural data.

Connect Every Corner

HaLowLink 2's sub-1GHz signal penetrates multiple floors and walls, reaching garages, basements and detached shacks. Large homes can be smart without planting mesh nodes everywhere.

Reach Where Cell Towers Can't

Deploy two HaLowLink 2s to create a 2.4GHz Wi-Fi hotspot in rural areas with spotty signal. Create a stable internet connection up to 1km to your off-grid cabin, worksite, or event.

What is Wi-Fi HaLow?

Wi-Fi HaLow is a wireless communication standard specifically designed for IoT applications. It’s an extension of the Wi-Fi (IEEE 802.11) family of standards but operates in the sub-1GHz frequency band (usually 900MHz, varies by region). This lower frequency allows for longer range, better penetration through obstacles, and lower power consumption compared to traditional Wi-Fi operating at 2.4GHz and 5GHz. It aims to provide a robust and power-efficient way to connect a large number of IoT devices over relatively long distances.

Wi-Fi HaLow is a wireless communication standard designed for IoT applications. It operates in the sub-1GHz frequency band (usually 900MHz, varies by region). This lower frequency allows for longer range, better penetration through obstacles, and lower power consumption compared to traditional Wi-Fi operating at 2.4GHz and 5GHz.

Specifications

Interface	1 x LAN Ethernet port 1 x WAN Ethernet port 1 x USB-C port 1 x Mode Button
CPU	Mediatek MT7621 @880MHz, Dual-core
Memory / Storage	DRAM 256MB / NAND 32MB
Protocol	2.4GHz Wi-Fi (802.11n) HaLow Wi-Fi (802.11ah)
Antennas	2 x Internal 2.4GHz Wi-Fi Antennas 1 x External HaLow Wi-Fi Antenna
LEDs	3 x LED Indicator Lights
Power Input	5V/2A
Operating Temperature	-0 ~ 40°C (32 ~ 104°F)
Storage Temperature	-20 ~ 45°C (-4 ~ 113°F)
Dimension / Weight	88 x 68 x 24mm / 102g
Tools & Downloadables	Tutorials \| Media Kit
